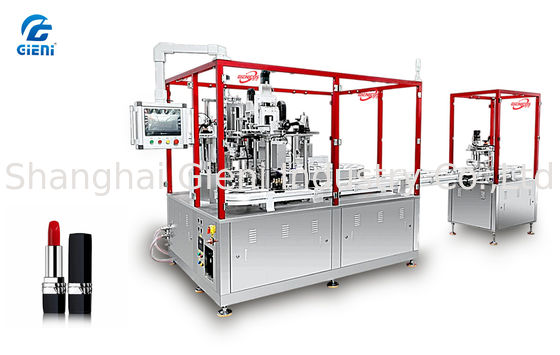

ชื่อแบรนด์: | Gienicos |
เลขรุ่น: | Glu-1300 |
Module | Key Data and Technical Configuration |
---|---|
1. Frame Structure | - Safety cover: Aluminum base with chrome-plated surface steel - Worktable/Electric cabinet/Door: SUS material - Support: Fixed holding feet, detachable material loading station for easy handling - Columns: Euro-standard aluminum profiles - Door: Stainless steel |

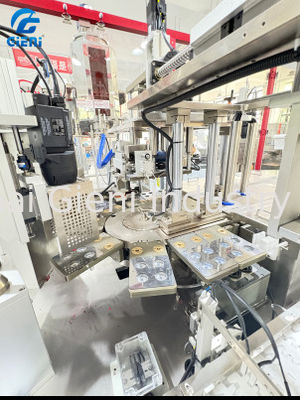

2. Table Drive System | - Slide rail technology: Imported U-shaped circulation slide rail system - Molds: 28 sets of precision silicone rubber molds with anodized processing - Lifting control: Servo index control for station lifting - Sealing: Fully sealed dynamic parts, double-layer insulation and sealing in cooling area |
3. Pre-heating Device | - Heaters: 2 units of Leister heaters with adjustable blow rate and heating rate - Control: Cylinder-driven up/down movement, handwheel for height adjustment, timer for heating time control - Temperature control: Digital display, PID control with adjustable-speed air fan |
4. Filling System | - Filling machine: 1 mobile filler with 2 nozzles, servo motors individually control filling volume of each nozzle, secondary mixing function - Tanks: 2×30L tanks with outer cleaning system - Pumps: Quick-joint piston pump, servo motor-driven - Material conveying: Electric heating dual-layer hose (only inner hose needs to be changed for color adjustment) - Other features: 2nd nozzle pre-heating/bulk collection, ceramic heating for tanks, PLC + touch screen control, dual power supply interfaces |
5. Nozzle Moving System | - Control: Cylinder-driven nozzle on/off, backward/forward movement, and horizontal material feeding - Heating: Heating tube for nozzle temperature maintenance - Tray: SUS material bulk collection tray |
6. Re-heat Device | - Equipment: Imported Swiss LEISTER heater - Adjustment: Handwheel for height adjustment, touch screen for temperature setting, manual fan volume adjustment |
7. Cooling Unit | - Type: Separated water circulation cooling device - Temperature range: Minimum -20°C - Compressor: 8Hp with R404A refrigerant - Structure: Cooling tunnel under the table, pipeline-circulated cold air, double-layer insulation outside the tunnel |
8. Discharging Unit | - Movement control: High-precision industrial module (Y/X axis + lifting) - Gripper: 4-piece vacuum gripper, servo motor-driven rotation, cylinder-driven lifting - Demolding: Two-jaw vacuum system (self-patented), compatible with φ8-17.1mm lipsticks, adjustable grip tension - Conveyor: Flexible chain-type conveyor for mold transfer |
9. Screw Down Unit | - Control: Cylinder-driven gripper on/off, servo motor-driven rotation - Function: Torque control for lipstick rotation and discharging |
