Preheating: 2 Leister heaters with adjustable airflow and heat output. Air cylinder-driven lift; handwheel for height adjustment. Timer-controlled heating; digital PID temperature display (with fan speed control).
1.3 Filling & Conveyance

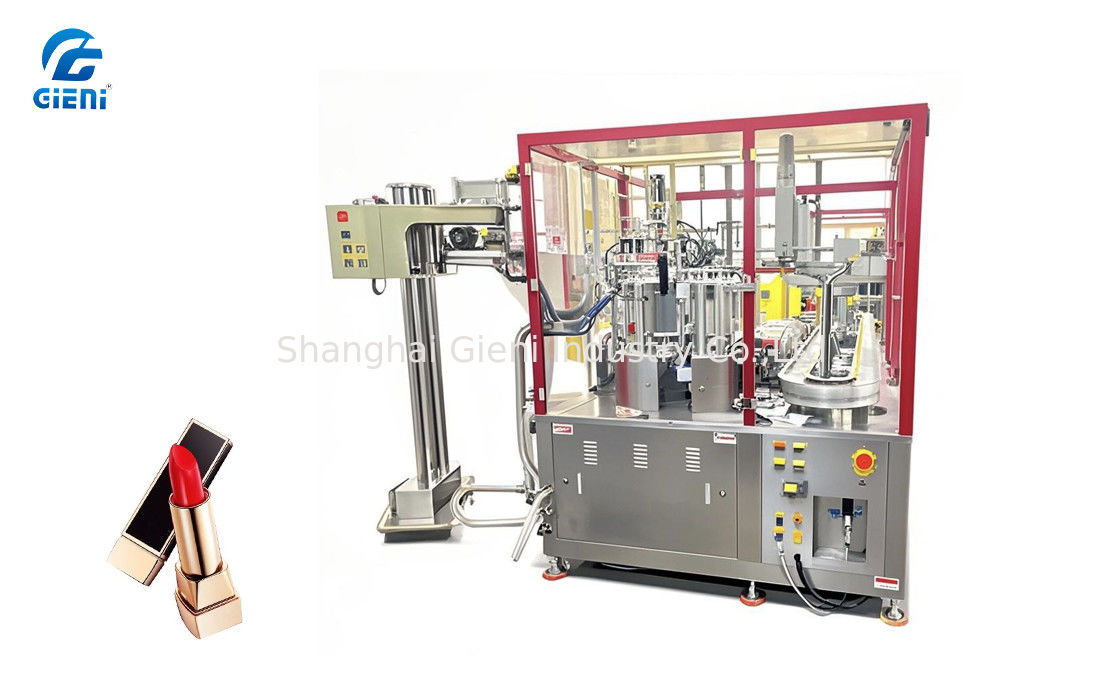

Filling Machine: 1 x movable dual-nozzle filler (servo-controlled per nozzle, with secondary mixing). 2 x 30L tanks (external cleaning system). Quick-connect piston pumps; ceramic heating for precise temperature control. Electrically heated dual-layer hoses (replaceable inner hose for color changes). Servo-driven piston pump; air cylinder-controlled needle valve; AC motor agitator. PLC-controlled with touchscreen/button interface; dual power supply options.
Nozzle Control: Air cylinder-driven opening/closing and movement. Heated nozzles; SUS collection tray; air cylinder-controlled material movement.
1.4 Auxiliary Modules
Reheating: Swiss-imported heating elements; handwheel height adjustment. Touchscreen temperature settings; manual fan control.
